Entering a String of Data

In this example, the firearm and enviromental conditions, bullet weight, bullet type and manufacturer, gun powder used, case, and cartridge over-all-length are the same for all entries. The performance data entered in the spread sheet at the bottom is associated with the different powder weights used.

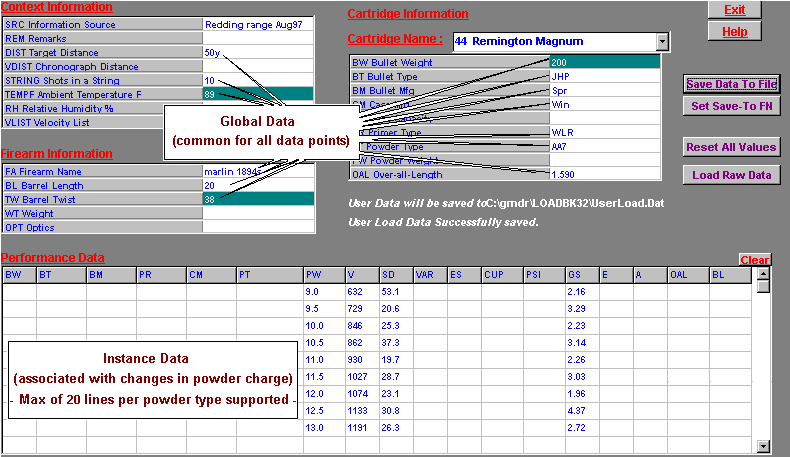

Example CUD Screen

The information entered this way will produce a textual display in the main cartridge page and will be graphed by RCBS.Load as follows:

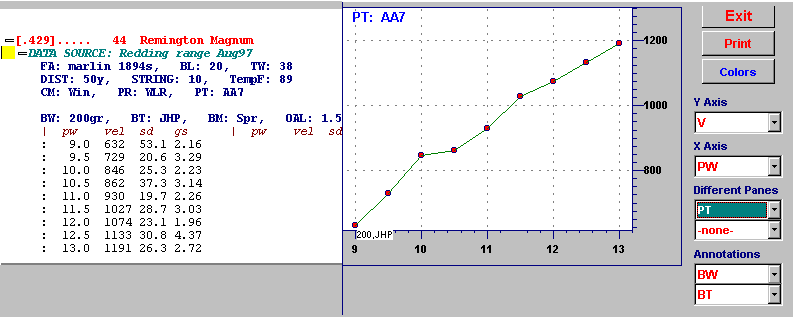

Textual and graph displays of the data
